Feature

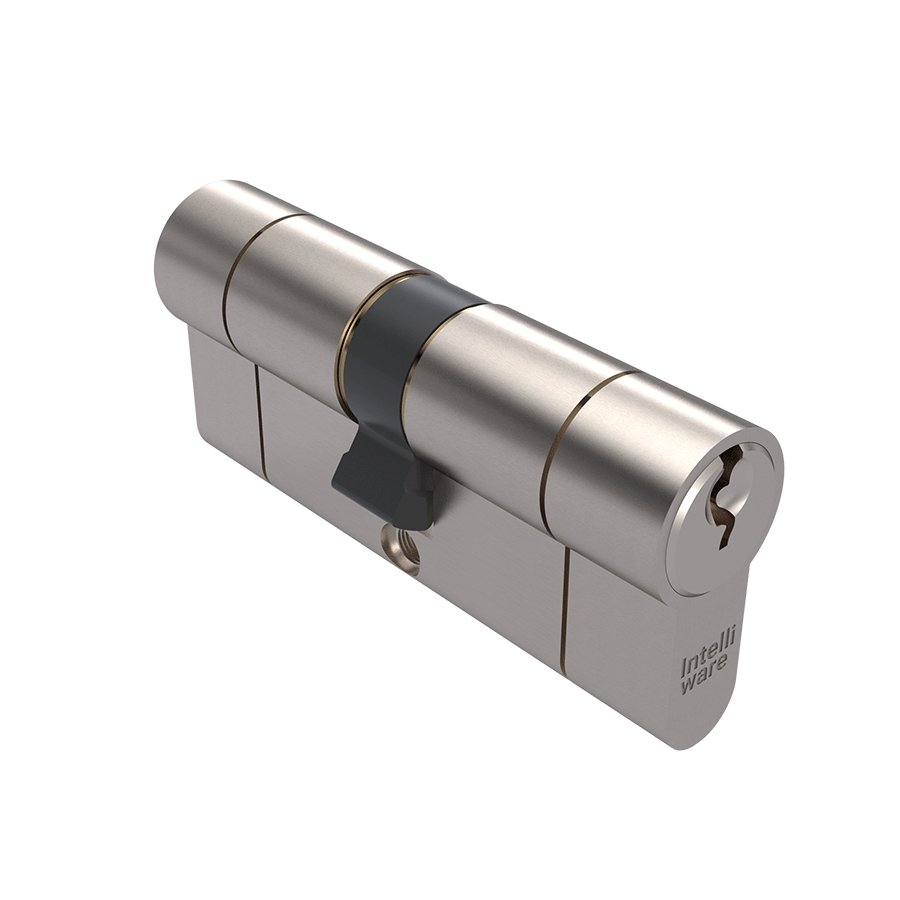

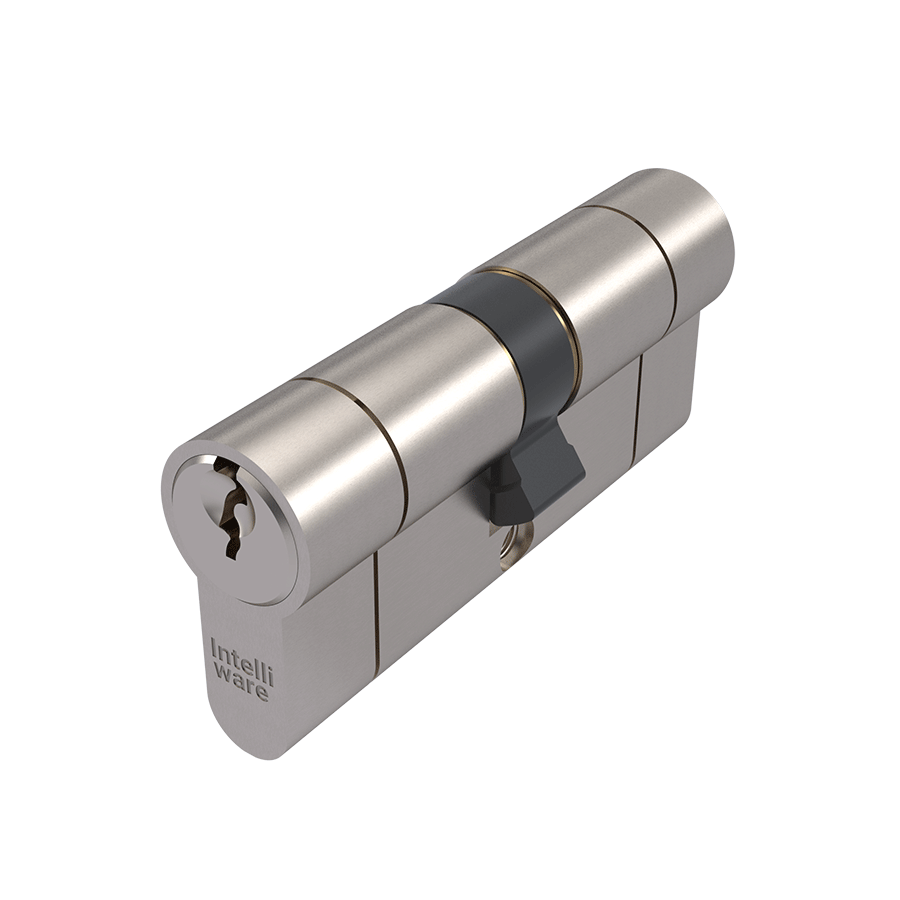

1. Solid brass euro profile security lock cylinder
2. Cylinder is with 6 pins
3. Supplied with 3pc brass key, square or round head
4. The most popular surface treatment are available
5. Anti-snap, Anti-pick, Anti-bumping, Anti-drill
6. Precision parts guarantee security and quality
7. According to EN 1303
|

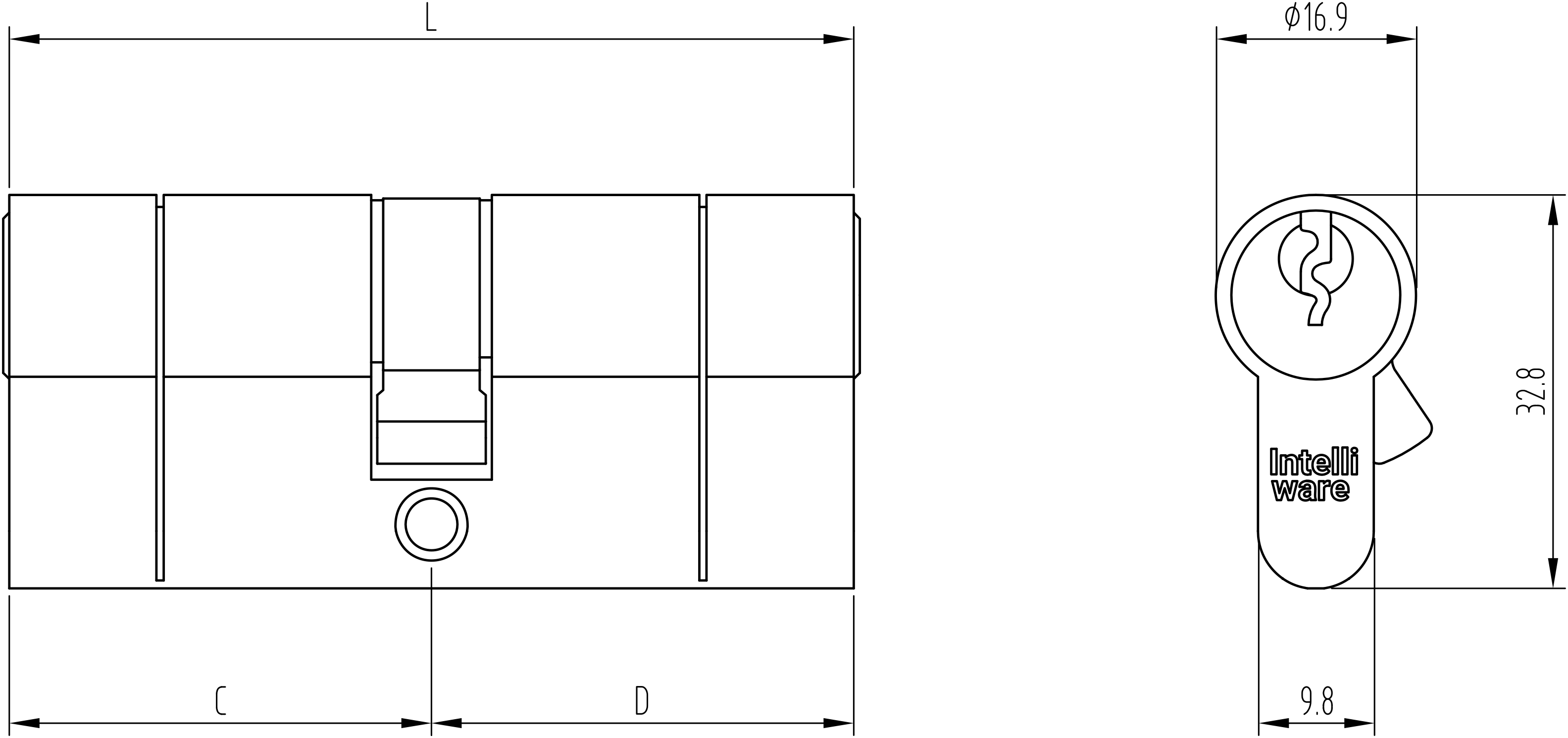

L (mm)
|
C / D (mm/mm)
|
|
45
|
30/15
|
|
50
|
25/25
|
|
60
|
30/30
|
|
65
|
30/35
|
|
70
|
30/40,35/35
|
|
75
|
30/45,35/40
|
|
80
|
30/50,35/45,40/40
|
|
85
|
35/50,40/45
|
|
90
|
35/55,40/50,45/45
|
|
95
|
35/60,40/55,45/50
|
|
100
|
35/65,40/60,45/55,50/50
|
|
105
|
45/60,50/55
|
|
110
|
45/65,50/60,55/55
|
|
120
|
55/65,60/60
|
